Portable® LVS-3BMP
Portable Truck Measurement
Ideal for large or long-term portable truck measurement projects
Portable Loadscan® LVS-3BMP is an advanced load volume scanner designed to deliver accurate, non-contact truck volume measurement which is ideal where flexibility and mobility are required. As part of the trusted Loadscan range of volumetric load scanners, this unit measures actual material volume reliably and efficiently while keeping installation and setup simple.
Why Choose the Loadscan Portable LVS-3BMP?

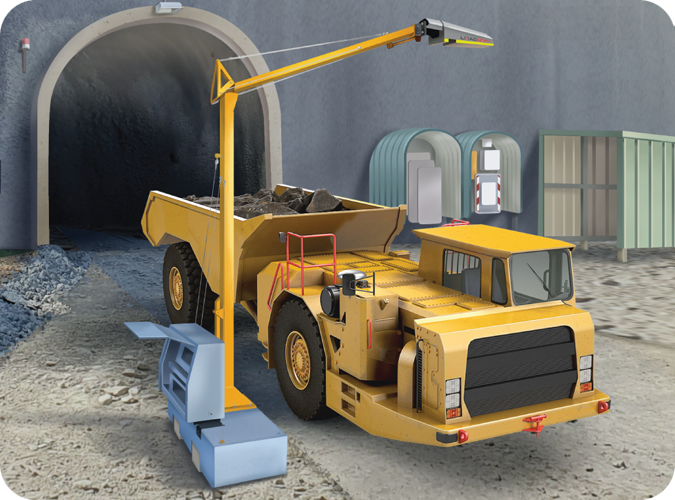

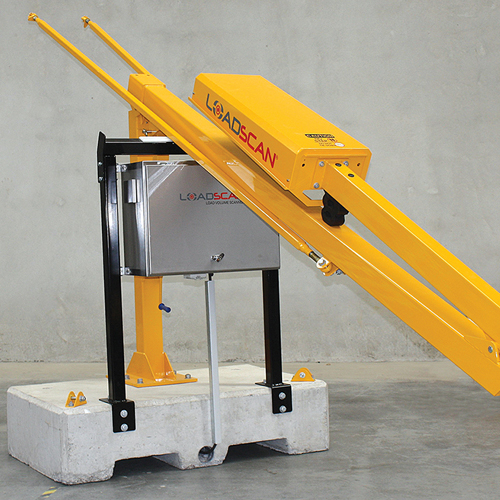

The block mounted portable LVS-3BMP combines precision measurement with site mobility. Perfect for quarries, mulch yards, sand pits, civil sites, and long-term portable truck measurement projects. Mounted on a precast block for easy repositioning, this volumetric load scanner adapts to changing site layouts without sacrificing measurement accuracy.
FEATURES & BENEFITS
Portable (fork-slots and lifting points provided)
Built-in kiosk options for operator console, printer, generator and LED message board housing
RFID Tag Reader for automatic vehicle identification
Solid, stable or low security concern
Runs off generator*, mains (line) power or 24VDC power source
Loadscan & LVS Scanner Technology Overview

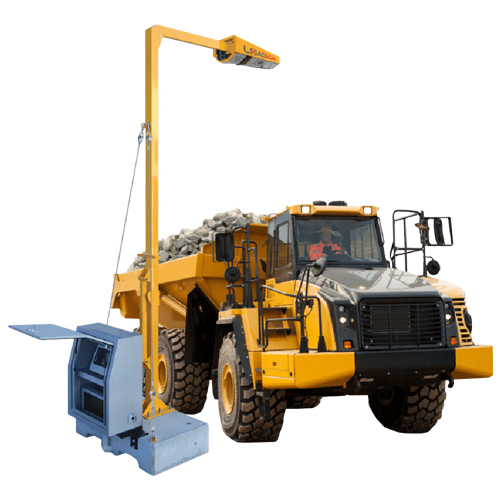

A Loadscan load volume scanner system like the LVS-3BMP automatically captures a 3D profile of material in a truck bed using laser scanning technology allowing for elimination of guesswork and manual estimation. Trucks simply pass under the elevated scan head at low speed, and the system captures the precise volumetric load data for reporting and analysis.
How It Works
- Vehicle enters scanning zone.
- Laser scanning head records a 3D load profile.
- Volume is computed via proprietary Loadscan software.
- Results are displayed locally and stored in the Loadscan MyScanner Cloud Portal.
This automated process improves operational transparency, billing accuracy, and data integrity compared with traditional weight-based or manual methods.
Integrations & Software
Your Loadscan load volume scanner can feed data into the MyScanner cloud portal, giving you:
- Remote access to scan results
- Historical volume analysis
- User permissions and data export
- Reporting for billing, compliance, productivity
Cloud accessibility means your team can collaborate and monitor loading performance from anywhere with internet access.
Common Industry Uses
This LVS scanner is widely used across:
- Mining operations
- Construction and civil projects
- Bulk material supply chains
- Quarries, sand and stone depots
- Mulch, bark, and landscaping materials
Anywhere trucks carry irregular loads, Loadscan improves measurement consistency and operational efficiency.
Loadscan Price & Value Considerations
Loadscan price varies based on configuration, deployment options, and added software integrations. Upfront system cost depends on your site’s needs. Long-term gains include improved accuracy, fewer disputes, and automated reporting. These benefits deliver rapid ROI compared to traditional truck scales.
For tailored pricing and site evaluation, please request a quote using the form below.
Request a Quotation
Please complete the form below, and a SITECH SA representative will contact you to assist.
Frequently Asked Questions
What accuracy can I expect from a Loadscan LVS scanner?
Most systems deliver ±1 % volumetric accuracy in real conditions.
Can the portable LVS-3BMP be moved between sites?
Yes. Its block-mounted design makes it easily relocatable.
Is Loadscan compatible with weighbridges?
Yes. It integrates with weighbridge and site software systems.
Do I need constant power for the Loadscan system?
No. Portable configurations can run on mains, generator, or 24 V sources.
Is the Loadscan MyScanner portal truly cloud-based?
Yes. You can access data from any internet-enabled device.
