Mine Payload Scanner

Mine Payload Scanner

Measure Actual Load Volumes, Not Converted Weight Estimates

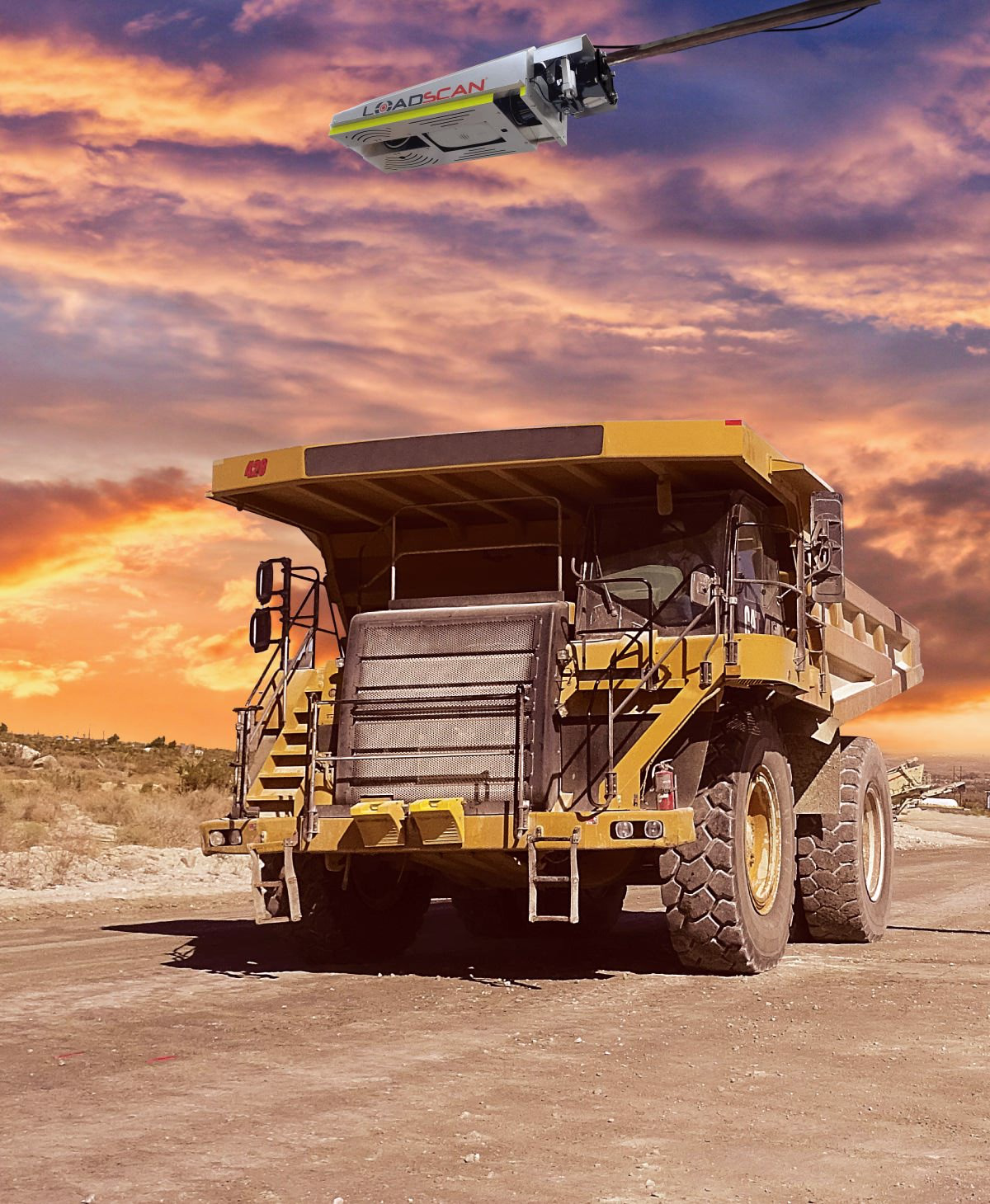

The Loadscan Mine Payload Scanner (MPS) uses eye-safe LiDAR laser scanning technology to accurately measure the exact volume of material loaded into every truck bin. Delivering the same high level of accuracy as the certified LVS system, the MPS gives mining operations a reliable, automated and auditable payload measurement solution for both surface and underground applications.

Enquire Now

LiDAR-Powered Volume Measurement

What is load volume scanning?

Loadscan is at the forefront of mining tech! The Mine Payload Scanner (MPS) system utilizes eye-safe Lidar laser scanning technology combined with proprietary Loadscan software to measure the exact volume of material loaded into a truck bin. With the MPS system you’ll measure actual volume, not a converted weight estimate.

By accurately calculating net volumes delivered for processing you can eliminate arguments over tons delivered by the haulage contractor or haulage department to the mill. It also enables you to optimize loading for maximum asset utilization.

A 3D scan image of every load is generated, providing an audit trail and visual record of loading. Customers have found this extremely helpful when training and coaching their operators.

Simple, Automated Scanning Process

How the MPS system works

Empty truck is scanned to create reference scan in the database

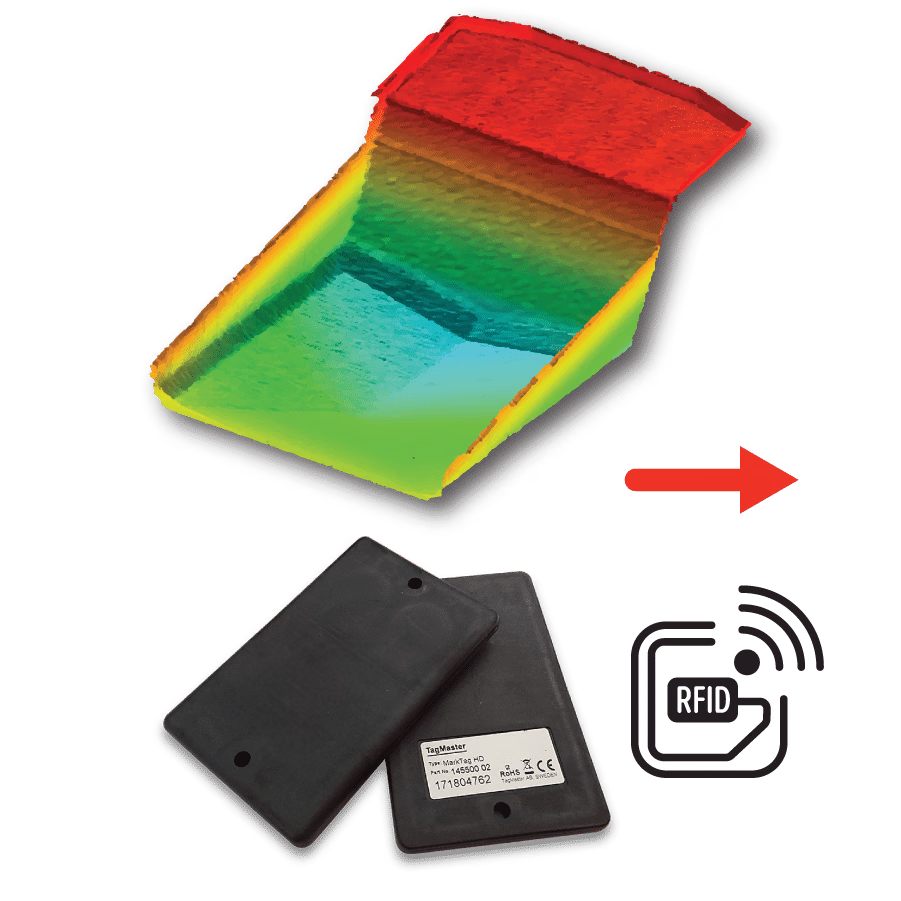

Trucks can be tracked manually or ﬁtted with RFID tags for automatic identiﬁcation

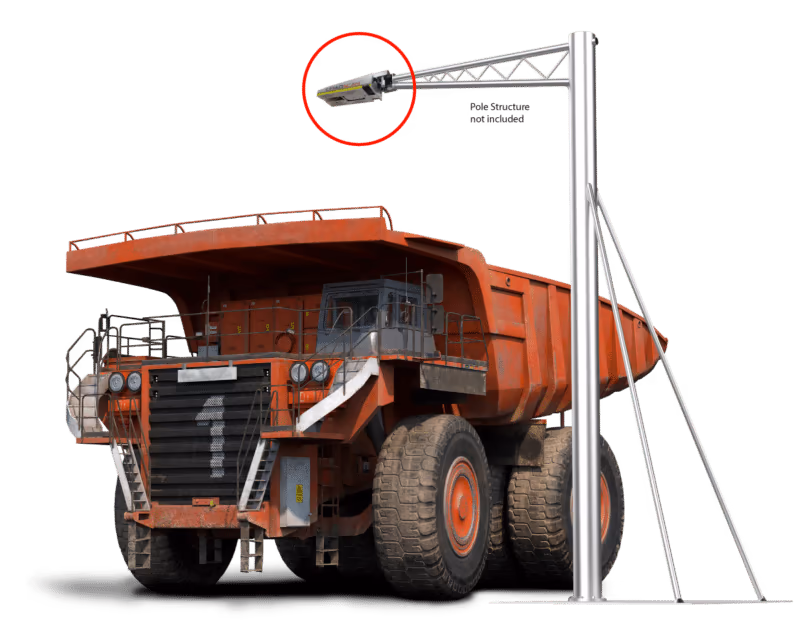

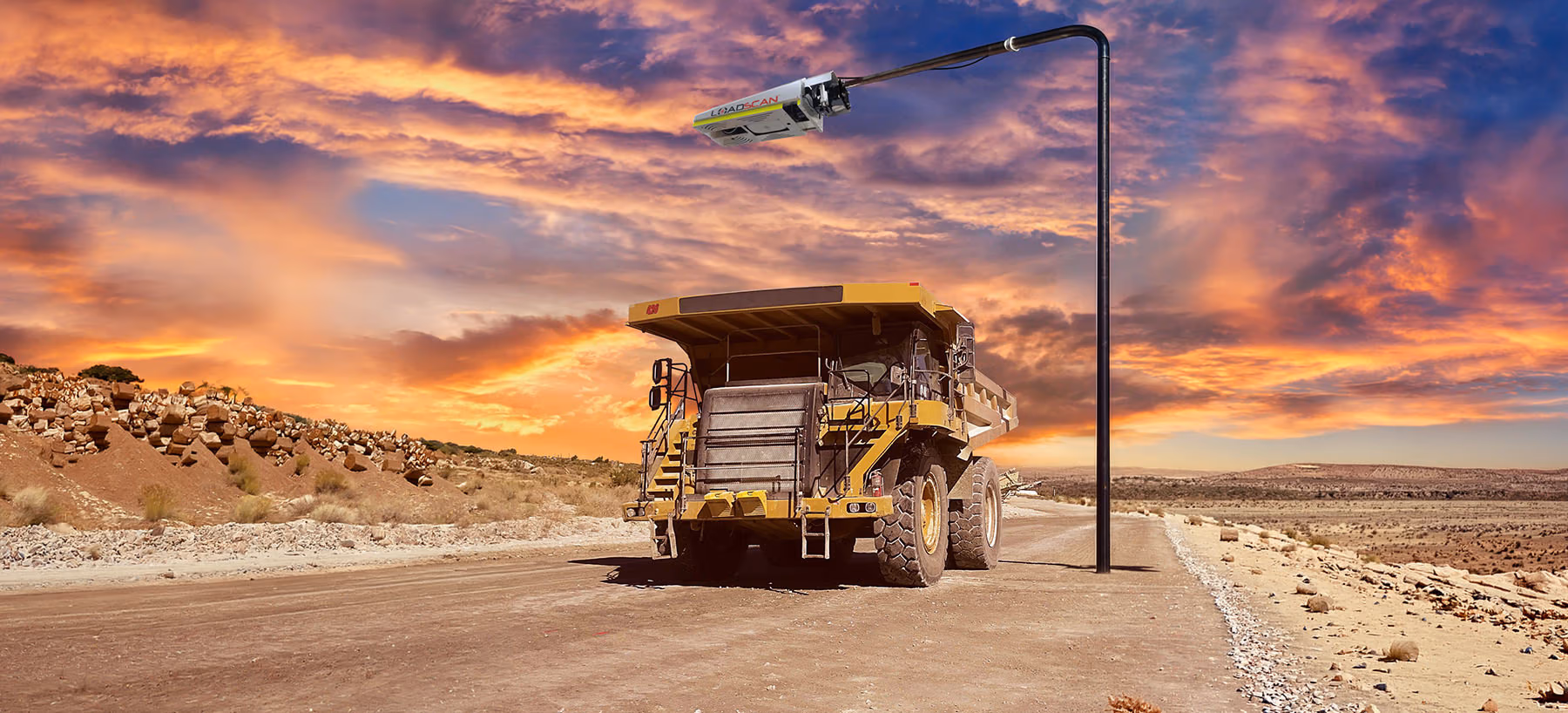

Trucks are scanned by driving below an elevated scan head, which can be mounted on a pole, gantry, or underground mine portal. The scanning process is fully automated.

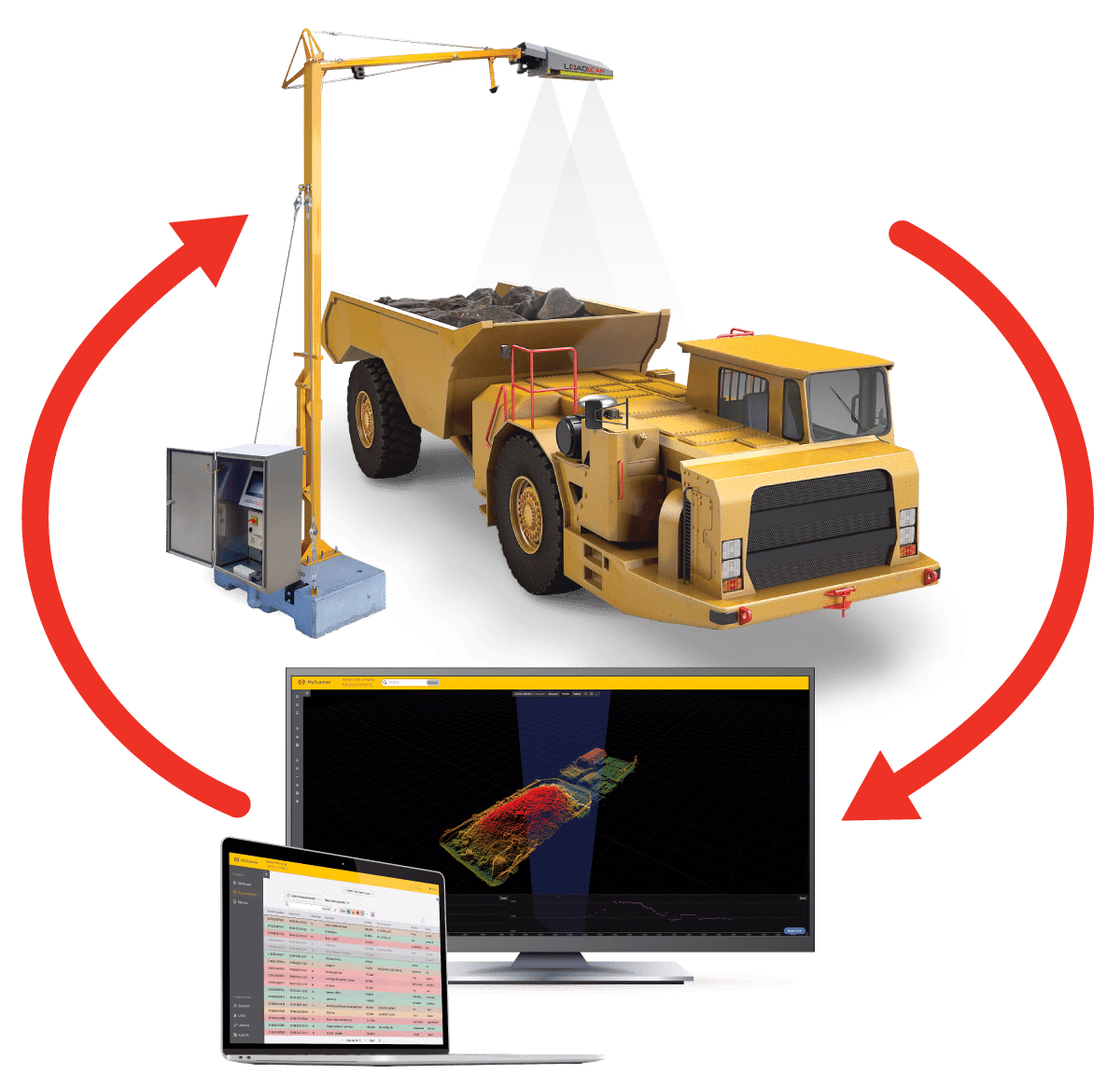

Proprietary MyScanner™ software reports volumetric measurement, including 3D load profiles of every load

Loadscan is the only load volume scanning company worldwide to have achieved trade certification approval for truck volume measurement. Our LVS-3 system is certified for trade in New Zealand under Trade Approval Certificate 1556 (MAPPS NZ), pattern approval Certificate 13/1/15 (NMI AUS) and the National Type Evaluation Program Certificate of Conformance 24-001P for weighing and measuring devices (NTEP USA). The MPS shares a common scan engine and measurement algorithms with the LVS and delivers the same level of accuracy. The MPS is sold as ‘Monitor Only’ and ‘Not Legal for Trade Use’, however it will still perform to the same high level of accuracy as required by the Trade certificates in New Zealand and Australia.

Configuration Options

Volume scanning delivers extensive mine automation benefits

The Loadscan LVS is available in four mounting configurations, each designed to meet the specific deployment needs of different operations and site types. Whether you require a permanent fixed installation, a long-term portable setup, a mobile solution that moves between sites, or a custom configuration for specialist environments such as underground portals or large dumpers, there is a Loadscan LVS system suited to your requirements.

Easily identify and correct underloading to increase profitability
Improve loader operator performance and optimise trucking factors
Measure actual volume, not a converted weight estimate
Measure and account for carryback
Remove discrepancies between quantities hauled and mill processing data
Account for every load delivered or removed from site
Gain a better understanding of bulking and compaction factors
Improve ore body knowledge with volumetric as well as mass data
Automatically track truck arrival and departure times
Eliminate hand-written load dockets and manual docket processing
Seamless data interface with most mine management systems
Our LVS and MPS scanners operate to an accuracy of +/- 1%
No significant maintenance costs or recalibration required

Configuration Options

Four Configurations to Suit Any Site or Application

Block Mounted Fixed LVS-3BMF

For permanent locations with a site office
Mains (line) power configuration for ‘always on’ system

Learn More

Block Mounted Portable LVS-3BMP

For long term jobs or fixed locations
Common applications include quarries, sand-pits, bark and mulch yards

Learn More

Trailer Mounted Mobile LVS-3TMM

For short term jobs or use across multiple locations
Common applications include construction sites, remote quarries, for hire
Can be powered by main power, generator or solar

Learn More

Custom Mounted MPS-3CMX

Utilizes a universal mounting bracket

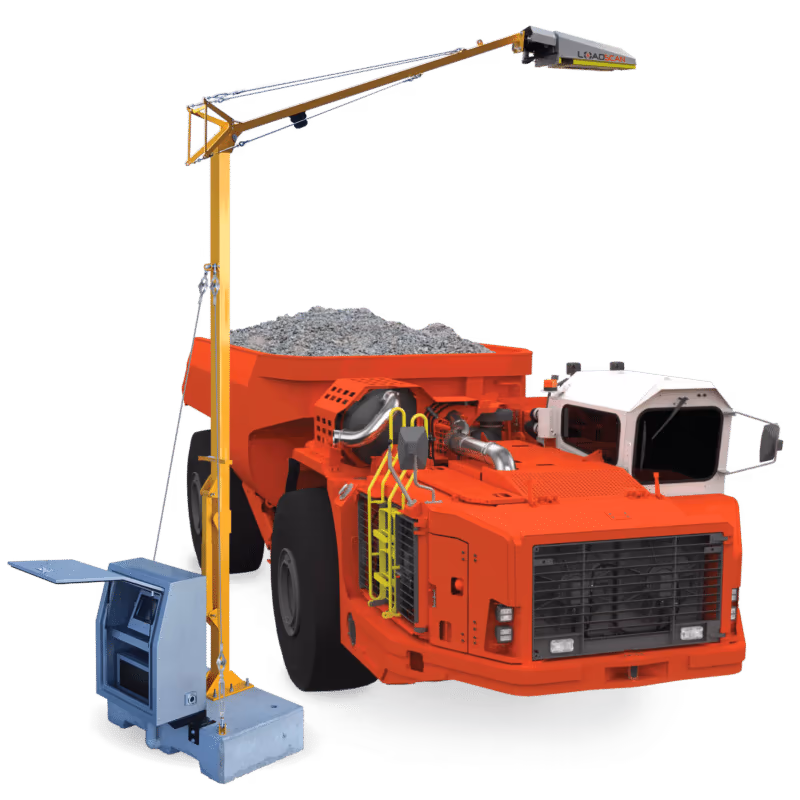

Common applications include entry/exit to underground mine portals or tunnels, and above large dumpers

Learn More

System Components

Everything You Need Included as Standard in Every LVS System

The standard block-mounted LVS configuration shown below is designed for use with on-road trucks and small off-highway articulated dumpers. Vehicles are scanned by driving slowly below the elevated scan head. The scanning process is fully automated.

A touch-screen operator console provides for easy operator control and monitoring of the system and a high visibility LED message board displays load results, driver instructions and status messages. All Loadscan LVS systems also include an RFID tag reader (for automatic identification of each truck and trailer), docket printer, LVS measurement software, and MyScanner™ reporting software.

Enjoy Exceptional Benefits with every Load Volume Scanner System

Benefits	Description
Accurate Volumetric Measurement	High-precision laser scanning ensures consistent and repeatable results.
Improved Revenue Protection	Prevent under- or over-loading disputes with verified load data.
Operational Efficiency	Fast scanning keeps traffic moving without delays.
Data Transparency	All data stored and accessible via the Loadscan MyScanner Cloud Portal.
Scalable Deployment	Fixed, mobile, and trailer mounted mobile LVS-3TMM options available.

Solutions for Every Mining Application

We have a volume scanning solution for your mining application

Whether you are operating on the surface, underground or at the processing plant, Loadscan has a volume scanning solution designed to meet the specific demands of your mining application.

Surface Mining

Underground Mining

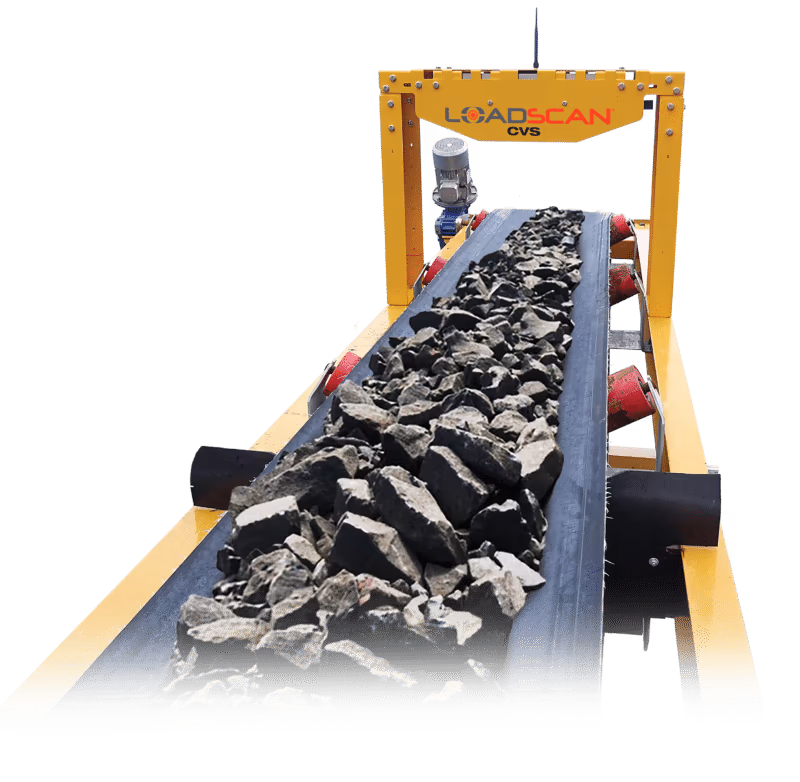

Mine processing

Extend Your System’s Capabilities

Powerful Add-ons to the Standard System Configuration

The Loadscan LVS can be further enhanced with a range of purpose-built add-ons that improve data capture, remote accessibility and operational oversight. The LoadTrak in-cab consoles allow drivers to enter load details directly from the cab, while the MyScanner Remote Access portal gives managers and supervisors secure, real-time access to load data and system controls from anywhere in the world.
