Connect your office to the field with a Trimble tablet, rugged and fully connected field computer for construction measurements and site positioning. Brains and brawn. What could be better.

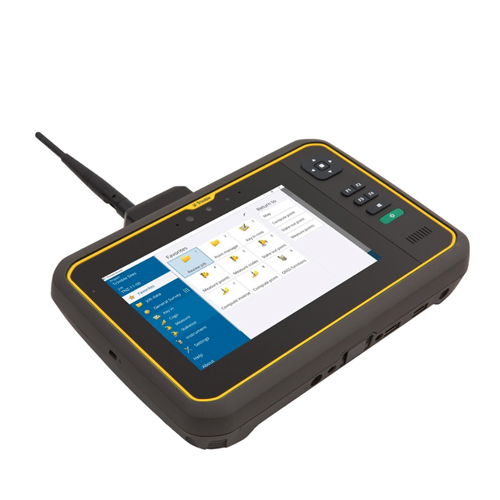

The Trimble® T7 tablet is purpose-built for demanding survey applications. Featuring a powerful processor, Windows® 10 OS, large memory and a modern user interface, the T7 is a fast, reliable field computer for surveyors and site managers alike.
Capturing data, visualizing and manipulating maps, and running office applications out on the job site is easy with the T7—and it’s all packaged in a rugged, compact, highly portable device.
Flexible Productivity
- Fast Intel Pentium processor, large 8 GB memory, and 128 GB internal storage enables quick data input and easy processing and storage of large data sets.
- Programmable hard keys for fast workflows of common or repetitive functions.
- Dual expansion slots accommodate interchangeable, user-replaceable Trimble EMPOWER modules for customized workflows with one device.
- A professional grade built-in GNSS receiver supports GPS, GLONASS, and BeiDou constellations as well as SBAS capabilities for accurate real-time positioning.
- Connect to Trimble Universal & Robotic total stations and Trimble GNSS receivers for a fully integrated solution.
Fit for Site & Office
- Powered by Windows 10 Pro and with access to the Microsoft® Office Suite, you can install and run the latest office applications in the field.
- 7-inch multi-touch screen, for finger or stylus, with a bright outdoor readable display to collect, manipulate and easily view maps and data in full sunshine or shadow.
- Upload, sync and share data in real time with integrated wireless communication options including Wi-Fi, Bluetooth® 4.2 and 4G LTE cellular data.
Built to Last
- Compact, ergonomic design with grip zones and a hand strap for comfortable, secure handling and portability on the job.
- Ultra-rugged performance with MIL-STD-810G certification and an IP65/IP68 rating for dust and water to withstand tough conditions and environments.
- Long lasting hot-swappable batteries, featuring LED indicators, for a full day’s work in the field.
- Touch screen performance, even when wet.
ADDITIONAL CONFIGURATION OPTIONS
The Trimble Empower platform boosts the capabilities of your TSC510 field controller and accelerates your return on investment.
Trimble EM120 EMPOWER Module
The Trimble EM120 EMPOWER Module is a rugged, lightweight 2.4 GHz radio module designed to enable communication between Trimble robotic-enabled total stations and compatible base devices, providing seamless integration to robotic total stations through a wider range of data collectors without compromising range or robotic functionality.
Trimble EM940 Empower Module
The Trimble EM940 Empower Module offers a flexible, worldwide solution with its dual-band radio. It allows users to switch between 450 and 900 MHz radio without additional equipment, and enables the use of a single receiver across diverse job sites. The EM940 reduces costs by eliminating the need for duplicate infrastructure on a single jobsite.
