MSP566
GNSS Heading Receiver
Delivering highly accurate positions and orientation in challenging GNSS conditions

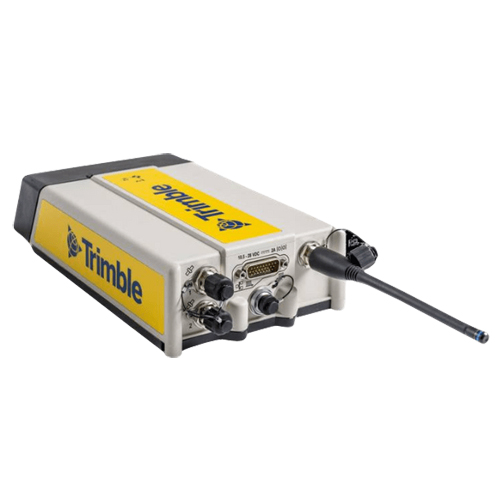

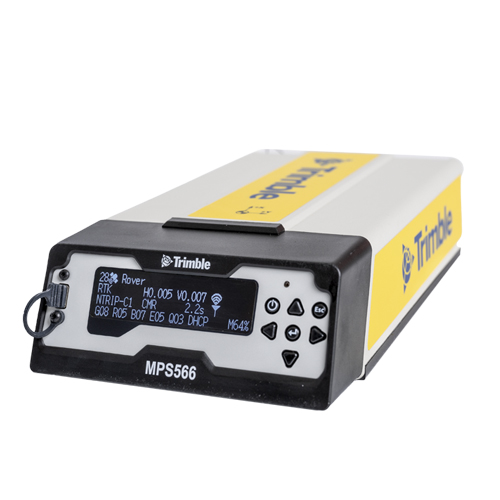

The Trimble MPS566 receiver delivers highly accurate positions and orientation in challenging GNSS conditions, using a wide variety of GNSS correction sources. This ‘all-in-one’ unit incorporates the latest industry-leading positioning technology from Trimble along with a full suite of modern communications capabilities, in a rugged, compact package that can withstand harsh work environments and be deployed anywhere.

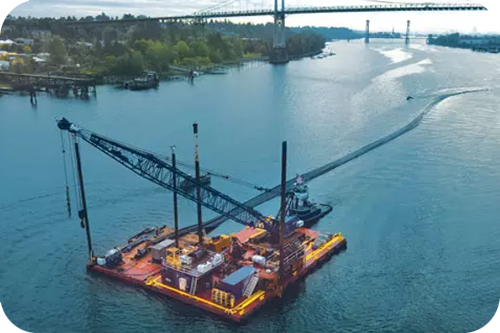

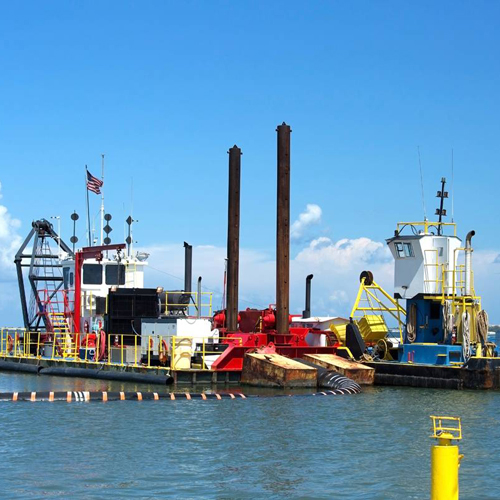

Delivering accurate positioning and orientation from a wide variety of GNSS correction sources makes the Trimble MPS566 the perfect choice for applications demanding exact heading and attitude measurements, including dredging, rock and material placement, and positioning tasks (tugs/anchors).

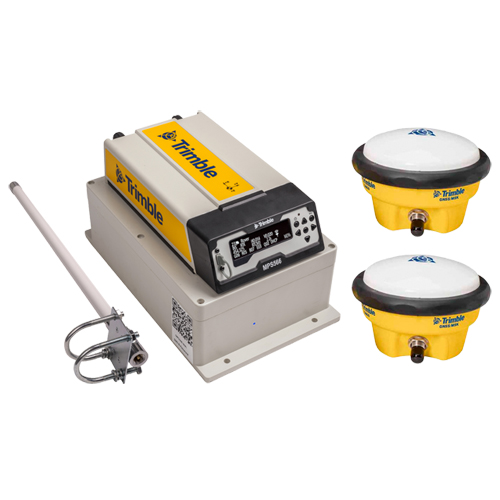

- Combines position, heading and attitude into a single unit to reduce costs, power requirements and cabling – ideal for small spaces
- Use the receiver as a cellular hotspot on the vessel for downloads and remote support
- GNSS correction source connectivity: Wi-Fi, UHF radio, cellular modem, MSK Beacon and two MSS satellite correction channels
Integration connectivity: Ethernet, Wi-Fi, Bluetooth and Serial
Key Features
- 30 cm Location RTK rover capability (RTK correction source required).
- GNSS triple-frequency tracking:
- GPS: L1-C/A, L1C, L2E, L2C, L5
- GLONASS: L1-C/A, L2-C/A, L1P, L2P, L3
- QZSS: L1 C/A, L1C, L1S, L2C, L5, L6
- NavIC: L5-C/A
- SBAS: L1-C/A, L5
- Trimble CenterPoint® RTX for RTK level precision anywhere (rover upgrade not required) (subscription required).
- Trimble OmniSTAR® service and Fugro MarineSTAR capable – no rover upgrade required (subscription required).
- Dual MSS tracking capability (e.g., Trimble RTX® and Fugro MarineSTAR)
- Trimble ProPoint® technology for superior performance in challenging GNSS conditions.
- Trimble xFill® technology for seamless RTK coverage during connection outages.
- Wi-Fi® access point and client.
- Internal LTE 4G modem with nano SIM slot.
- Internal UHF radio (depending on the model). See Internal UHF Radio.
- GNSS data logging to internal memory.
- 1PPS output, event input.
- Built-in spectrum analyser in the web browser interface.
- NMEA outputs.
- 20 Hz position outputs (50 Hz with Precise Rover upgrade).
