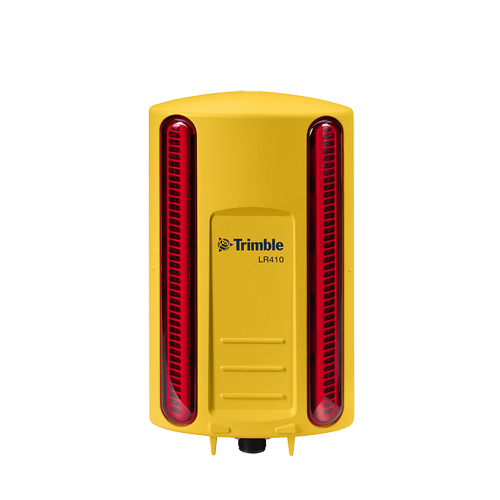

Trimble LR410 Laser Receiver
Grade Control Component – Laser Receiver
Lift to an accuracy of 3-6 millimeters
The Trimble LR410 Laser Receiver delivers lift accuracy of 3–6 mm, making it one of the most reliable machine control components for earthmoving and grading. With 360° laser detection, rugged weatherproof housing, and seamless integration into Trimble GCS systems, the LR410 ensures construction professionals achieve accuracy, productivity, and reliability on any site.
The Trimble LR410 Laser Receiver is designed to be used with either the new GCS 300-600 Grade Control System or the Prinz Albert systems as a replacement for the RS2S laser receiver. Engineered for use in harsh environments, the Trimble LR410 is 100% weatherproof and features 360° laser detection. Integrated reference LEDs, located in the corner of each of the four laser receiving windows, show the laser strike location from the centre of the receiver, power, and error status, for fast visual receiver status. An industry-standard CAN (SAE J1939) interface makes system integration easy.
FEATURES & BENEFITS
- Full 360° laser detection field of view
- 231mm (9.1″) detection window
- Linear detection position to within 1.5 mm (0.06″)
- 100% sealed and weatherproof enclosure
- Sunlight viewable LEDs indicate set up, power and errors
- Auto-dim LED display
- Non-rotation clamp
- Selectable on-grade accuracy from the CB420 control box
- Industry-standard CAN (SAE J1939) interface
How the Trimble LR410 Laser Receiver Improves Construction Workflows
The Trimble LR410 Laser Receiver is more than just a component — it’s a key part of efficient machine control systems. By replacing older receivers such as the RS2S, the LR410 gives operators a modern, high-accuracy laser receiver that integrates seamlessly with Trimble GCS 300–600 systems. Contractors benefit from:
- Faster setup and grade checking with 360° laser detection
- Consistent accuracy across all job conditions (3–6 mm lift precision)
- Reduced downtime thanks to the LR410’s rugged, weatherproof build
- Easy integration with machine hydraulics through the industry-standard CAN interface
With the LR410 Trimble laser receiver, construction teams can cut errors, reduce rework, and achieve precise grading results — saving both time and costs on every project.
Request a Quotation
Please complete the form below, and a SITECH SA representative will contact you to assist.
Trimble LR410 Accuracy and Performance on Site
Accuracy is critical in construction, and the Trimble LR410 Laser Receiver is built to deliver consistent results. Offering lift precision between 3–6 mm, the LR410 ensures operators can achieve the exact grade required, even in demanding earthmoving or fine grading applications.
For contractors working on roads, site prep, or large-scale infrastructure projects, this level of accuracy reduces costly rework and improves overall efficiency. The LR410 Trimble receiver also allows operators to select the required on-grade accuracy from the Trimble CB420 control box, giving them full flexibility for different project needs.
Whether you need standard tolerance or tighter precision, the LR410 accuracy in millimeters ensures your machine performs with the reliability and control that Trimble technology is known for.
Frequently Asked Questions
What is the Trimble LR410 Laser Receiver used for?
The Trimble LR410 is a machine control component that provides high-accuracy lift control for construction grading. It integrates with Trimble grade control systems to deliver 3–6 mm lift accuracy.
How accurate is the Trimble LR410?
The LR410 delivers lift accuracy between 3–6 mm. Operators can also select on-grade accuracy settings via the Trimble CB420 control box to match specific project requirements.
Can the Trimble LR410 Laser Receiver be used in all weather conditions?
Yes, the LR410 is fully sealed and weatherproof, making it reliable in harsh construction environments, including rain, dust, and extreme temperatures.
What Trimble systems are compatible with the LR410?
The LR410 works with Trimble GCS 300–600 Grade Control Systems and can replace older models such as the RS2S laser receiver.
Where can I buy the Trimble LR410 Laser Receiver in South Africa?
You can purchase the LR410 directly through SITECH SA, the authorized Trimble distributor. Contact us for a quotation or consultation.
