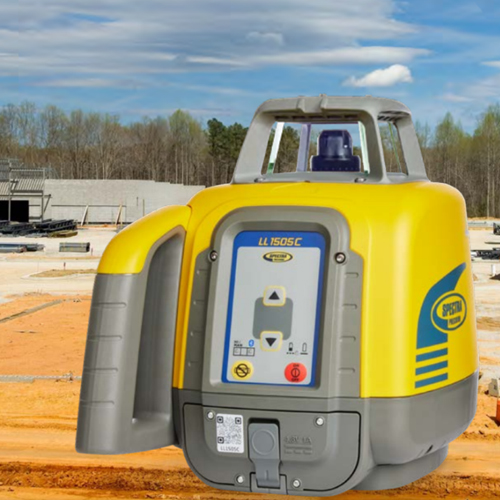

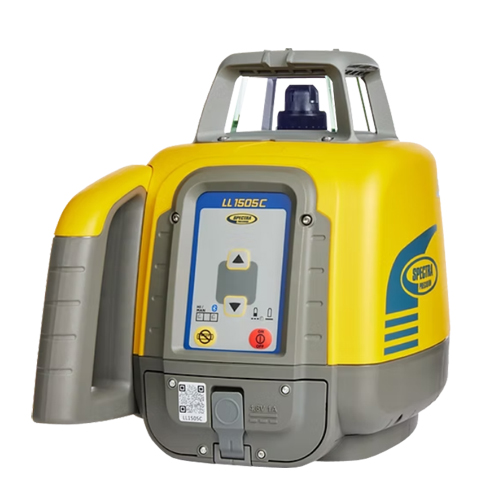

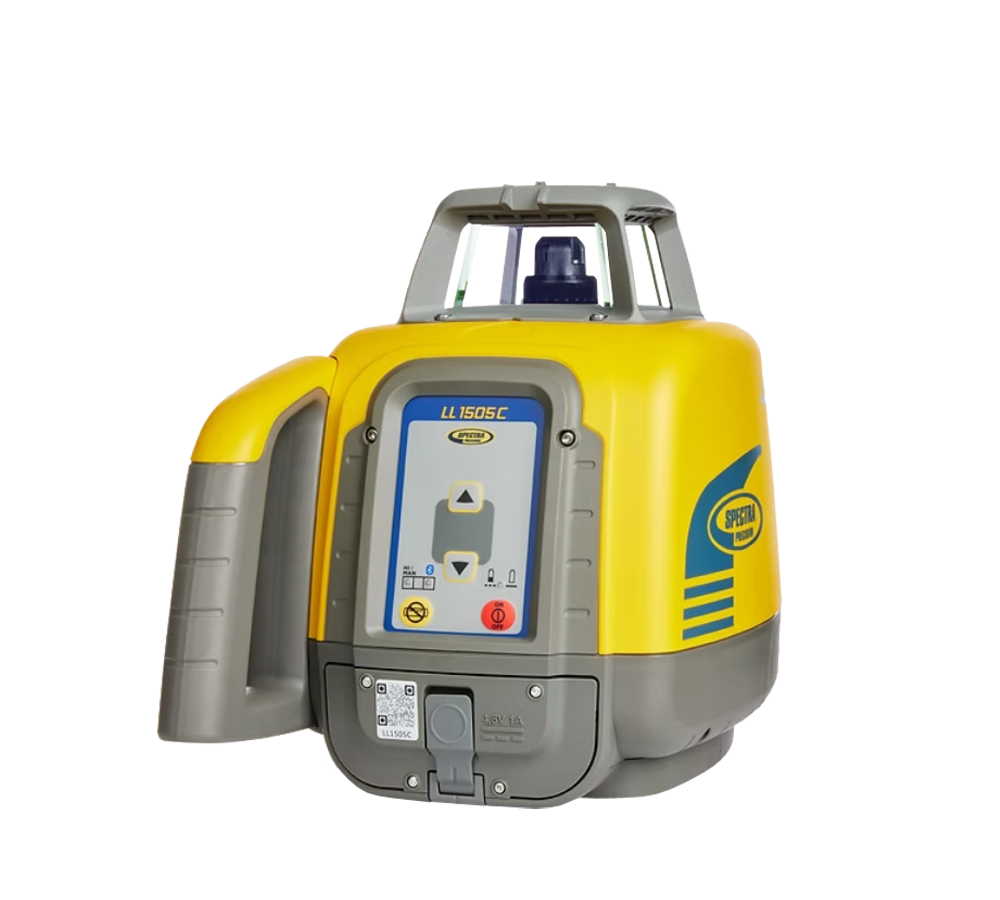

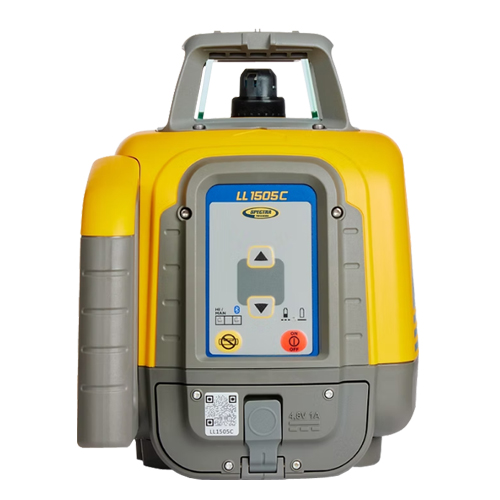

LL1505C
Laser Level
Prepared to perform at all times.
The automatic, self-levelling Spectra Precision® LL1505C Laser Level is the most rugged laser level available, tough enough to handle a wide variety of general and concrete construction applications. The rugged laser can withstand drops of up to 1 meter onto concrete and tripod tip overs up to 1.5 meters. This strength, combined with full weatherproofing and dustproofing, reduces downtime and lowers repair costs over the life of the product.
KEY FEATURES & BENEFITS
- Automatic self-levelling – horizontal & vertical
- Accuracy 1.5mm / 30m
- Working range of 1200m diameter with HL760 receiver
- Bluetooth connection allows laser control with a smartphone
- Height of Instrument Alert – unit stops rotating when jarred to avoid erroneous readings
- Simple keypad for easy grade matching
- Selectable rotation speed is ideal for working with machine mounted receivers
- Power versatility – charge the batteries inside or outside the laser. Alkaline batteries can also be used
- Extremely durable and portable
- 5 Years warranty
SPECIFICATIONS
Levelling Accuracy
± 1,5mm @ 30m | 10 arc seconds
Rotation Speed
300, 600, 900 rpm
Self-Levelling Range
Typ. ± 5° (± 8.7%)
Radio Range
HL760-Up to 100m
Operating Temperature
-20°C to +50°C
Storage Temperature
-25°C to +70°C
Power Source
10,000 mAh NiMH battery back or 4 x 1.5V D alkaline batteries
Battery Lifetime (NiMH)
Up to 55 hours
Battery Charging Time
< 10 hours
Battery Charging Temperature
5°C to +40°C
Charger Input Voltage
100V-240VAC ± 10%, 50 Hz – 60 Hz
Dust and Waterproof
IP66
Weight
3.49 kg (incl. Battery pack)
Product Dimensions
240mm x 280mm x 180mm
Take command of the LL1505C
- Single person manual slope control

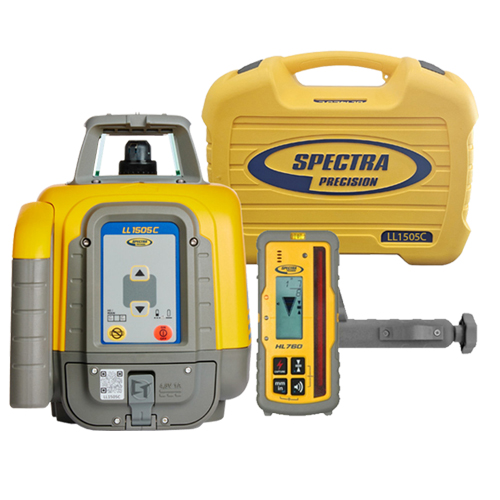

- Complete kits available, and fits in one case with tripod and grade rod
- Energy-efficient design offers long battery life
- Highly durable design able to survive a drop up to 1m (3 feet) onto concrete
- Remote control or remote-control app allows operation of laser functions from anywhere on the jobsite
